Ramsond CUT50 50 Amp Pilot Arc Digital Inverter Plasma Cutter

Image 1
  • Image 1
Price:
$559.99
SKU:
CUT50DY
Brand:
Rating:
5 Stars ( 2 product reviews )
Shipping:
Free Shipping
Quantity:

Product Description


• GENERAL OVERVIEW •

  Make: Ramsond
  Type: 50 Amp Pilot Arc Digital Inverter Plasma Cutter
  Condition: BRAND NEW – (In Sealed Factory Box)
  Status: IN STOCK – (Ships in 2 business days)
  Warranty: Manufacturer Limited - Parts and Labor Included; Shipping to Svc Center Excluded
  Features:
  • 50 Amp Digital Inverter Air Plasma Cutter
  • Pilot Arc Start - No Scratch Contact Needed
  • Automatic Dual Voltage / Dual Frequency (110/220V 50/60Hz)
  • Integrated Digital Display
  • Integrated Pressure Gauge
  • TOSHIBA Transistors (MOSFET)
  • Max Severance Thickness: 1"
  • Max Cut Thickness: 3/4"
  Accessories:
  • Plasma Torch
  • Plasma Consumables
  • Air Filter/Regulator
  • Ground Clamp
  • Connections, etc.
• NEW RAMSOND CUT50 with PILOT ARC •
The Power Technologies Division of Ramsond Group has introduced its new Ramsond CUT50, a 50 Amp, Pilot Arc starting, Dual Voltage (110V and 220V), Dual Frequency (50 and 60 Hz), Inverter Technology, High Frequency Plasma Cutter. The CUT50 is the latest generation of Ramsond's plasma cutter line. This new Plasma Cutter is equipped with a DIGITAL AMPS DISPLAY and INTEGRATED PRESSURE GAUGE located on the front panel.


It is further upgraded with a fully INSULATED FOLDABLE HANDLE. It has been internally redesigned to incorporate the latest high frequency inverter technology using V-MOSFETs made by TOSHIBA, along with PWM (Pulse Width Modulation), the combination of which help deliver a far more constant, concentrated and precise current to the cutting surface. This leads to a cleaner and more uniform cut. Furthermore, as a result of these improvements, CUT50 has been substantially reduced in size and weight. With the Ramsond CUT50 Plasma Cutter, regardless of your training, you can achieve smooth, clean and uniform cuts on a wide range of surfaces and material (e.g. stainless steel, carbon steel, alloy steel, copper, brass, aluminum plate and other conductive material) with minimal heat input and without distortion of metal. This model has been designed so it is easy to use by the do-it-yourself user, while fully accommodating the demands of professional operators, NOW including the highly sought-after PILOT ARC START feature, which allows you to start cutting without having to make contact with the material.

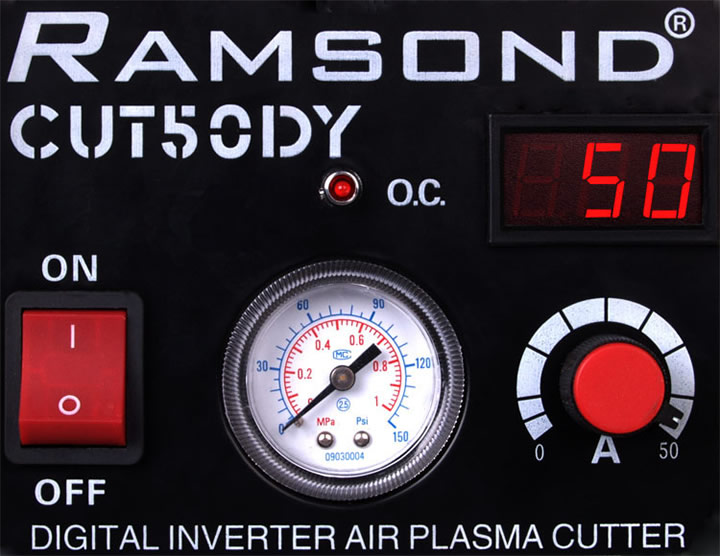

• USER FRIENDLY OPERATION
INTEGRATED PRESSURE GUANGE AND DIGITAL DISPLAY •
Unlike traditional models, the Ramsond CUT50 plasma cutter features 2 new features that set it apart from its would-be competitors. These outdated models normally are equipped with a pressure gauge that is attached to the air filter located in the rear of the machine. Naturally, with these units, the user must either flip the machine around or walk to the back the machine to view the pressure gauge and setting. Ramsond CUT50 has incorporated the pressure gauge into the front panel of the plasma cutter, making it visible from virtually any angle. Additionally, the Ramsond CUT50 plasma cutter is equipped with a large digital display that accurately displays the current setting of the unit.
• UNRIVALED QUALITY •
The production process for Ramsond products is among the most stringent in the world and meets or exceeds some of the industry's most rigid standards. Our studies show that it is in fact among one of the best in the industry and is unrivaled by other would-be competitors. The quality of each of the integrated components is constantly monitored during the course of production. Only components and materials that meet the highest industry standards for quality are permitted to be incorporated into Ramsond products. Finally, upon conclusion of production, each unit is put through a newly devised, far more rigorous 30 point testing and quality inspection routine. This process is critical to ensuring a product that is not only safe, but reliable in both performance and durability.
• Cut at 12 Times the Speed of Sound •
Plasma cutting is a process that is used to cut steel and other metals using a plasma torch. In this process, an inert gas (compressed air) is blown at high speed out of a nozzle; at the same time an electrical arc is formed through that gas from the nozzle to the surface that is being cut, turning some of that gas to plasma. The plasma is sufficiently hot to melt the metal being cut and moves sufficiently fast to blow molten metal away from the cut. The plasma, which is maintained between the work-piece and electrode, travels at over 9000 MILES PER HOUR (15,000 km/Handle). That's over twelve times the speed of sound.
• Advantage of Plasma vs. Oxy-Fuel Torch •
Plasma does not use expensive, hazardous gases, only compressed air. It imparts much less heat into the piece being cut, eliminating warping. It does not require ignition. It leaves little to no slag to clean up or grind off.  The cost per cutting hour can be less than oxy-fuel since there is no gas cost. It is also much quicker and easier.  So, you cut better, faster and inexpensively.
• Skill and Training •
There is not a lot of skill or training required to operate a plasma cutter. The torch should remain at a 90-degree angle. With the Ramsond CUT50 featuring Pilot Arc, you can leave a distance between the tip and the material without having to touch them or drag the torch against the surface (AKA "scratch start").
• AIR FILTER / REGULATION SYSTEM •
(Included)
Compressed air is the most popular gas used for plasma cutting. You can use an air compressor or a bottle of compressed air. The CFM (Cubic Foot per Minute) is important because that is the amount of air that will be distributed per minute and will keep your RAMSOND CUT50 running consistently. The PSI (Pounds per Square Inch) is the actual air pressure required to operate your CUT50 (50-75 psi).  The other gas often used is nitrogen, but the only advantage to using it is for cutting stainless steel. Although, you will get a cleaner cut, the cut thickness will be slightly diminished. With some exotic metals a gas mixture may be needed. You will also want to have clean and dry air when operating any plasma cutter. Ramsond CUT50 comes already equipped with a 2-in-1 filter/regulator device. This 2-in-1 regulator/filter regulates the output air pressure and keeps the air dry and clean. Dry air is important because if there is moisture in the line it will travel with the air and exit the end of the torch. This is not necessarily dangerous but will shorten the life of your consumables because the arc will follow the moisture in all directions and erode the tip prematurely. The Air Filter/Regulator attaches to the rear of the unit. The knob on top of the regulator adjusts the output air pressure. You can see the pressure on the pressure gauge installed on the front panel. By turning the knob, the output air pressure can be adjusted to your desired level.The filter/regulator also removes dust and moisture from the compressed air. You may see water collected in the glass bowl of the filter regulator. This means that your compressed air source contains moisture which was filtered and collected by this regulator/filter. If you see accumulation of water in the glass bowl, do not be alarmed, simply pull on the drain/safety pin located on the bottom of the bowl to empty out the water.
• ADVANCED INVERTER TECHNOLOGY •
The CUT50 inverter rectifies the input voltage (110V or 220V) into DC (Direct Current), which is then fed into a series of  MOSFETs (Metal Oxide Semiconductor Field Effect Transistor). Ramsond CUT50 utilizes the most advanced TOSHIBA MOSFETs. These MOSFETs (transistors) are switched at thousands of Hertz, which greatly reduces the magnetic flux, and therefore the size of the transformer.  Hence, the use of MOSFETs allows for a compact and light weight machine such as the CUT50 to operate at its performance parameters. In simple terms the use of these MOSFETs makes it possible for CUT50 to produce the necessary power, using very little space and creating minimal heat dissipation.

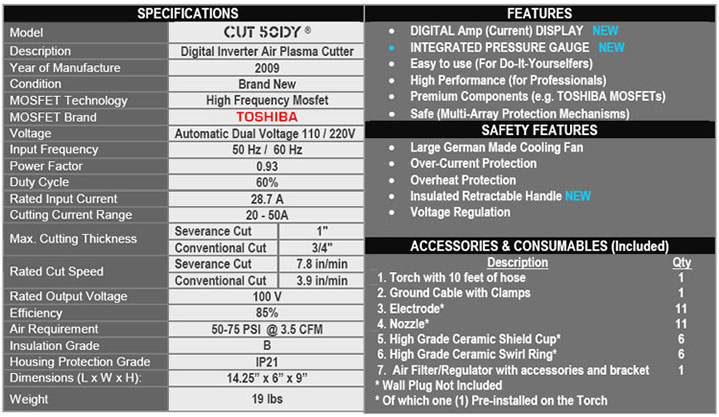

TECHNICAL PARAMETERS
• INCLUDED ACCESSORIES •

Each Ramsond CUT50 Plasma Cutter, comes complete with the following accessories:

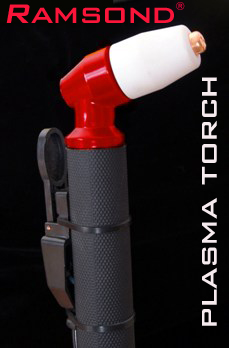

  • Plasma Torch (Push Button Control) with 10 Feet Hose
  • Plasma Consumables (10 Electrodes, 10 Nozzles, 5 Shield Cups)
  • Air Filter/Regulator and Mounting Hardware
  • Ground Clamp with Wire
  • Compact roll of teflon tape
  • Inlet hose with nozzles and clamp
  • Instruction Manual
• WARRANTY, SERVICE, and PARTS •

A 1 year Limited Manufacturer's Warranty is furnished with this product. This limited warranty provides for both PARTS and LABOR at Ramsond's certified repair service center. Ramsond has a complete dedicated service center for its line of welding and plasma cutting products. This service center is equipped with state of the art technology which accommodates proper service and maintenance of these units.

We consistently maintain a large inventory of consumables (electrodes, tips, cups, shields, etc.) which are available to our customers. For customer support or other inquiries please feel free to contact us during normal business hours at (248) 363-8302 or via email at sales@Ramsond.com.
Write your own product review

Product Reviews

  1. Great value 5 Star Review

    Posted by on 11th Jun 2015

    This is a great product for the price. I cut several different thicknesses to get the feel of it. It doesn't come with much instruction on how to use it. A chart showing recommended pressure and amp settings would be good to help beginners get started. I found one online and it was very helpful.

  2. never used a plasma cutter before 5 Star Review

    Posted by on 26th Apr 2015

    This is my first plasma cutter. With the help of very friendly and knowledgeable tech support I am able to use the plasma with ease
