Ramsond Model 27GW3 9500 BTU SEER 16.0 Mini Split Ductless Air Conditioner + Heat Pump

  • Image 1
Price:
$999.99
SKU:
R27GW3
Brand:
Shipping:
$149.99 (Fixed shipping cost)


Product Description

Ramsond® Model 27GW2 Ductless Mini Split Air Conditioner

Item-in-stock Brand New Condition Inventory Locatio
we ship UPS















Make Model Ramsond 27GW3
Description Wall Mount Ductless Mini Split Air Conditioner System
Condition BRAND NEW
Function Cooling and Heating (Heat Pump)
Capacity   •  9,500 BTU Cooling
  •  9,500 BTU Heading
Maximum Coverage Area Up to 400 Square Feet
SEER (Seasonal Energy Efficiency) 16.0
Refrigerant (Type and Amount) R410A - 2.09 lb
Compressor Rotary Type
Accessories Includes 15 Feet of Connecting Pipe (Lineset) and installation kit
Ramsond Corporation introduces its ultra-efficient Ductless Mini Split Air Conditioner System model 27GW3. This new 9,500 BTU (with 9,500 BTU heat pump) model is equipped with a high quality rotary type compressor and pre-charged with the most advanced R410 refrigerant. This system is a perfect union of modern technology, efficiency, function and design It is not only super efficient (SEER 16.0) and super silent, but pleasing and neutral in appearance and styling. The interior unit's flat panel style blends perfectly with any interior design element. The perfect combination of function and design have made this highly advanced Ramsond system one of the most sought after systems among both HVAC and interior design professionals.
(Place Mouse Pointer Over Thumbnails on the Right to View Larger Image)

Indoor Unit

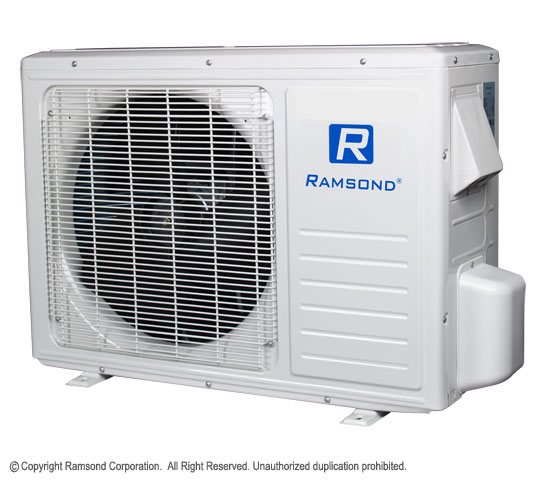

Outdoor Unit

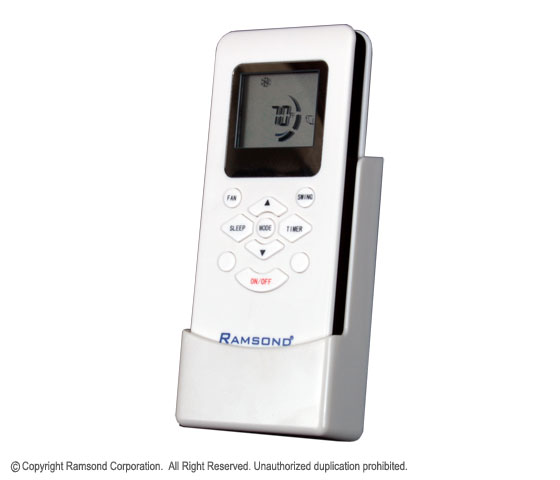

Wireless Remote

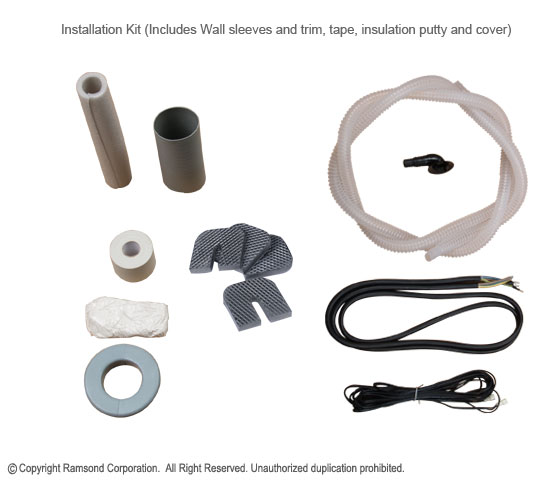

Installation Kit




Ductless mini split air-conditioners are relatively new to North America. However, they are the most commonly used system of air conditioning throughout the rest of the world. Ductless systems are also referred to as 'zone systems.' Understandably, ductless split air conditioning systems are becoming more popular in homes and offices, even when they are equipped with advanced central air conditioning system. By providing zone cooling, Ramsond ductless split system air conditioners save energy, since only the rooms that are occupied and used need to be cooled/heated. Simply stated, they cool/heat the 'zone' or the area in which they are installed. They require no expensive ductwork installation. This is the reason that they are far more efficient than conventional air conditioners. You can turn on the system when you want to use the area/zone and when not in use, the system can be simply turned off, saving electricity and money. Operating costs are much lower than those of central systems that cool every room, whether or not the room is in use. So, with a ductless system you can control the temperature of a zone where it is located. Therefore, you have the benefit of cooling only the room that you want, while leaving the central AC system off.

Ductless mini split system air conditioners combine the zoning flexibility of a conventional room unit (a single air-conditioner installed through a wall or a window frame) with the whole-house cooling potential of central systems. Like central systems, they have two main components: a compressor/condenser (outdoor unit), as well as an air handling unit (indoor unit/evaporator), which contains an evaporator and a fan. All Ramsond models are also equipped with heat pump, providing both summer cooling and winter heating.

There are two parts to a ductless systems. The indoor unit (evaporator) and the outdoor unit (condenser). The indoor unit is installed on the interior of an exterior facing wall. The installation is extremely simple. The indoor unit is equipped with a mounting bracket. This mounting bracket is secured to the wall and the indoor unit clips onto it; much like hanging a picture frame. The outdoor unit is typically placed on a flat surface outside. The indoor and the outdoor units are connected by a series of wires for power and communication. Once the indoor and outdoor units are connected, then the connecting pipes (Line Set) need to be attached between the indoor and the outdoor unit. There are 2 sets of connecting pipes; the 'suction line' and the 'liquid line.' These insulated connecting pipes are pre-flanged and need to be attached to the connections of the indoor and the outdoor unit.
27GW2 Installation Graphic
(Place Mouse Pointer Over Thumbnails on the Right to View Larger Image)

Insulated Line-Set

Drain Hose

Vibration Pads

Wall sleeve

Insulation Putty

Tape


Ramsond's innovative QUICK-INSTALL™ system has now made the installation of its new range of ductless mini split systems even simpler than before. The new QUICK-INSTALL™ system incorporates the following features:

  • Pre-wired indoor unit
  • Pre-wired outdoor unit
  • Quick-Connection terminals for the connecting the outdoor unit to the indoor unit
  • Pre-flared, flanged, insulated Line Sets (Connecting Pipes) - No need for welding or soldering
  • Pre-charged System (R410) - No need to charge the system
  • Complete installation kit and hardware (Rubber Pads, Pipes, Drain Hoses, Tape, Putty, Insulation, etc.)

With these features of the QUICK-INSTALL™ system, the installation time is cut in half because the indoor and the outdoor unit are pre-wired and equipped with a quick-connection terminal. The quick-connection terminals also eliminate many of the wiring mistakes during installation which lead to permanent damage to system. With the QUICK-INSTALL™system it is now much easier and cheaper to install these units. Both the indoor and the outdoor units are pre-wired and equipped with quick-connection terminals.

QUICK-INSTALL™ system



Includes 15 feet of insulated copper line-set connecting pipes

  • 3/8 inches OD Gas
  • 1/4 inches OD Liquid
  • (Pre-flared and pre-flanged)



Quick ConnectExternal Unit Connection









Technical Data Sheet
Ramsond Model 27GW3
Ductless Mini Split Air Conditioner

SPECIFICATIONS
Model 27GW3
Function Cooling & Heating (Heat Pump)
SEER 16.0 (Super Efficiency)
Coverage Area Up to 400 Square Feet
Rated Cooling Capacity 9500 Btu
Rated Heating Capacity 9500 Btu
HSPF 8.5 Btu/W.h
Rated Input Voltage 115 V~ Single Phase
Rated Input Frequency 60 Hz
Cooling Power Input 800 W
Heating Power Input 810 W
Cooling Current Input 7.3 A
Heating Current Input 7.4 A
Noise Level Indoor Unit < 22 dB(A)
Noise Level Outdoor Unit < 34 dB(A)
Gas Connecting Pipe 3/8 inches
Liquid Connecting Pipe 1/4 inches
Dimensions (Indoor Unit) (WxHxD)
31.50x11.00x7.50 inches
Dimensions(Outdoor Unit) (WxHxD)
30.50x21.75x10.25 inches
Weight (Indoor Unit) 22 lbs
Weight (Outdoor Unit) 70 lbs

FEATURES
  • High Quality Rotary Type Compressor
  •  Digital Multifunction Wireless Remote
  •  Indoor Unit Dynamic LED Display
  •  Washable Corrugated Anti Mold Dust Filter
  •  Multi-Fold Evaporator for Faster Cooling
  •  Saw-Teeth Fan Design for Noise Reduction
  •  Self Diagnostic Microprocessor Control
INCLUDED ACCESSORIES
  •  Indoor Unit (Pre-wired + Quick-Install)
  •  Outdoor Unit (Pre-wired + Quick-Install)
  •  Remote Controller (Batteries Included)
  •  15 Feet InsulatedCopper Line Set
  •  Complete Installation Kit
  •  Instruction Manual
SAFETY CERTIFICATION
  •  ETL
&nbsp
WARRANTY
1 Year Parts Replacement Limited Warranty
5 Years Parts Replacement Compressor Limited
  Warranty


FUNCTIONS

INDEPENDENT DEHUMIDIFICATION QUIET MODE
AUTO DEFROST FUNCTION COOLING & HEATING (HEAT PUMP)
AUTO DIAGNOSIS TIMER (ON/OFF)
AUTO-RESTART FUNCTION SLEEP MODE
WASHABLE PARTICLE FILTER ACTIVATED CARBON FILTRATION SYSTEM
SILENT AIR FLOW SYSTEM ANTI-CORROSION

Suggested Retail Price: $1,239.99
Unmatched Quality and Components
R410A-SEER 14

Ramsond Ductless Mini Split Systems are simply the best systems presently in the market. The cutting edge quality of Ramsond ductless systems is simply unmatched. Quality is never compromised at Ramsond. Only the best quality and first-rate components, such as high quality rotary type compressor, and activated carbon filter are used in Ramsond products. All Ramsond ductless split air conditioners are pre-charged with certified R410A refrigerant. The R410A refrigerant is far more efficient than the typical R410A that is used in most air conditioning systems. It enables the high efficiency of the unit while preserving the ozone layer. This is another testament to Ramsond's dedication to environmentally friendly products.





Integrated Advanced Air Filtration and Heat Exchange System

All Ramsond ductless systems are equipped with two (2) anti-mold dust/particle filters, along with two (2) Activated carbon filter cartridges. They are installed under the front panel cover of indoor unit. These filters are easily washable. They ensure a constant circulation of fresh, healthy and dust free air. Additionally, the blue colored hydrophilic aluminum foil in indoor unit are designed to stay free of water contamination, enhancing heat exchange efficiency and air quality.




Super Silent Operation and Sleep Mode Function

Ramsond ductless mini split air conditioners are among the quietest (both indoor and outdoor unit) in the market. The indoor unit has a virtual silent operation. So silent that some of the world's most renowned recording studios utilize Ramsond ductless systems in their sound-rooms. Also, equipped with SLEEP MODE function, with the touch of a button, your Ramsond mini split system is set to automatically adjust the room temperature during your sleep.



Microprocessor Controlled Smart Operation

Ramsond ductless split air conditioners are equipped with highly advanced, state of the art, microprocessor controlled climate control system. Through this system, the environmental comfort is perfectly adjusted to your desired settings. The quality, flow and temperature is constantly monitored by the internal computer system of the unit to ensure optimal performance and maximum efficiency.



Dimensional Oscillating Swinging Louvre Air Delivery Technology

Multidimensional oscillating louvers of Ramsond ductless systems ensure the uniform flow of air throughout the room. By selecting the 'SWING' feature on the wireless remote control, the louvers will continuously move in a uniform up/down movement to evenly spread the cool/hot air. They same feature would allow the louvers to be set in a stationary, single direction position which will focus the flow of air to a particular area of the room.



Superior Inner-Grooved Copper Tubing

The copper tubing of Ramsond ductless systems are grooved on the interior. This enables a much faster refrigerant flow, increasing the heat exchange coefficient and efficiency by 30-50% over the traditional smooth copper tubing.


Indoor Unit Dimensions

When you purchase a Ramsond ductless air conditioning system, you can be assured that you will receive the most reliable and highest quality system available in market today. Furthermore, you will have the piece of mind of knowing that your investment is safe and guaranteed by a reputable company.All units are BRAND NEW (Not refurbished or reconditioned) System. We DO NOT sell used, refurbished or reconditioned systems. All items available IN STOCK for immediate delivery. Your order will be immediately processed and shipped from one of our warehousing facilities in US. Most orders are shipped within 1 business days and typically arrive within 2-7 business days from the date of purchase.



  Technical Support
At Ramsond, customer satisfaction is of the highest priority. A dedicated and highly trained team of professional engineers, HVAC technicians and sales specialists are at your disposal for all your sales, service and installation questions. If you require technical support during at any time, even during installation, our knowledgeable staff of technicians can provide you with necessary guidance and direction. You may contact our technical support at (248) 363-8302 or via email at tech@ramsond.com or click on the Contact Us button below to submit your questions and/or comments.

Item-in-stock Brand New Condition Inventory Locatio
we ship UPS
Write your own product review

Product Reviews

  1. I forgot we had it on....... 5 Star Review

    Posted by on 23rd Mar 2016

    This is the 2nd system we have purchased. It is fairly easy to install and easy to operate. After the installation was complete, we turned it on. Our mother came into the room and was looking for the system, and was wondering where the cold air was coming from.
    We all got a kick out of her comments. This is a great little system and is very quiet.


  2. i chose Ramsond for my home art studio to contrl tempersture and humidity. 5 Star Review

    Posted by on 23rd Feb 2016

    Jnstallation is fairly easy. Make sure you have an electrician lined up for the power supply from the panel and someone who knows how to purge the air and moisture from the lines before start up. Otherwise a do it yourself project.


  3. Great unit 5 Star Review

    Posted by on 21st Aug 2014

    This unit works great. Purchased it to serve as a backup to the existing central ac unit for the house. It cools the new addition to the house perfectly in the summer and in the winter the heat pump function is a nice added feature just in case you need some extra comfort. I have the unit for a year now and I am very pleased with the quality for the cost.
